Double-bin Plansifter

Type:FSFJ2×10×63Square(㎡):4.2Rotation dia(mm):45-55Power(kw):1.1Weight(kg):570

We're here to help: Easy ways to get the answers you need. Get Price

Share with :


Double-bin Plansifter
Double-bin Plansifter is also called flour checking sifter. It can be used not only for grain flour checking, also for powdery materials grading and screening. Used with impact flour detacher and bottom vibrating discharger, we can get quality grain flour.

Double-bin Plansifter Features:
1. It can be the excellent checking and screening equipment for grain flour with reasonable structure.
2. Metal screen frame, plastic coated sieve frame of two sides, self-banlance motor driving.
3. The sieve frame is compact and reliable, efficiently preventing sieve frame loosening and material leaking.
4. This machine has a large screen area with high screening efficiency and small covering area.
5. Simple installation, easy maintenance.

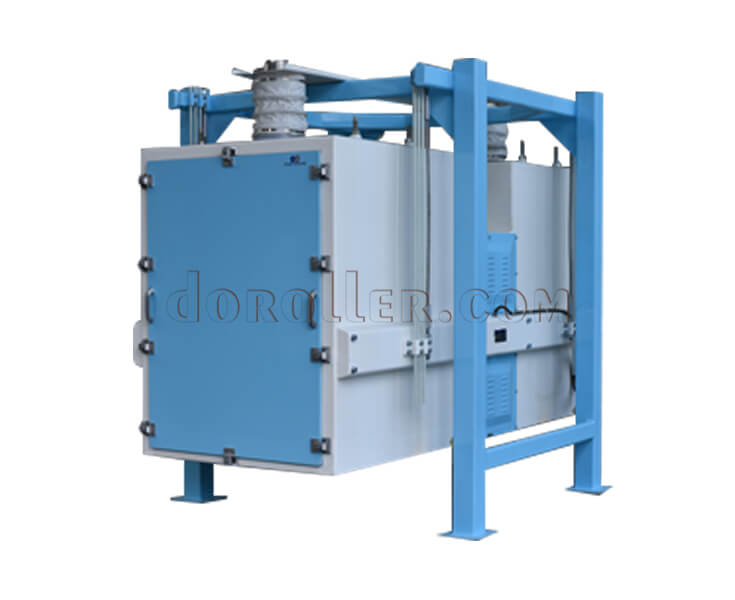

grain flour double-bin plansifter

Double-bin Plansifter Technical Parameter
Type FSFJ2×10×63 FSFJ2×10×70 FSFJ2×10×83 FSFJ2×10×100
Square M2 4.2 6.2 8.5 13.5
Rotation dia mm 45-55 45-55 45-55 45-55
Power KW 1.1 1.1 1.5 2.2
Weight Kg 570 660 780 1300
