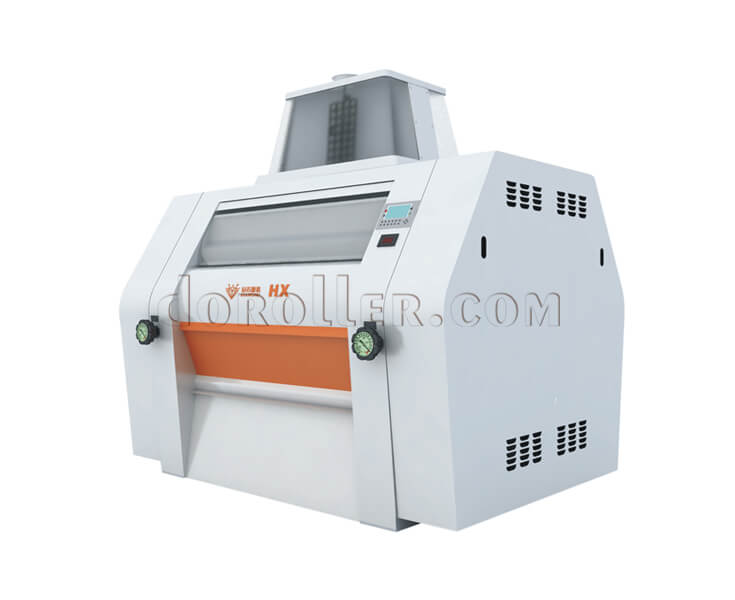

Diamond Tsunami Model Flour Mill Introduction
This  Diamond Tsunami Model flour milling machine is J type flour mill. The product specification has 800, 1000 and 1250 that can be applied in flour milling plant with a capacity more than 200TPD. This machine can be used for wheat flour milling, corn flour miliing, teff flour milling process and other various grain milling.

Features of
Diamond Tsunami Model Flour Milling Machine
1. This equipment can be set with microcomputer to realize full-automatic control. The complete machine can be controlled solely; can be controlled in a working net automatically, remotely and intensively; can be included in local area network or internetwork to have remote conection, diagnose and repair.
2. The feeding control system can be pneumatic-coutrol servo feeding or computer-control frequency conversion feeding.
3. Grinder roller adopts eccentric lever clucth structure, and the grinder roll group independently bears working stress.
4. Lie the grinder roll makes the material easily enter grinding area,convenient disassembly and maintenance.
5. Grinder roll bearing adpots self-aligning roller bearing, which ensures coaxial precise turning and bearing high rotating speed and operating pressure.
6. Adopting high quality, high-alloy and high-wear-resistance composite centrifugal grinder roll, steady running and long service life.
7. High precision rigidity strainer, long service life of V-belt.
8. Speed roller adopts three-wheel constant-speed tooth wedge belt, high transfer power, steady running and low noise.
9. There is negative pressure gas suction device of double intakes inside mill chamber, which not only optimizes feeding state, but also improves the thermal discharge of grinder roll and material.
10. The scraper cleans up roller more completely, long service life and easy maintenance.
11. The key parts all adopt the international advanced products.
12. The complete machine is full-closure compound structure, and the machine is painted by electrostatic spraying technique, so its original color can be kept for a long time.
13. The global initial computer automatic test and display, digital adjustment of roller space.
14. The grinder roll of core grinding adpots global unique laser frost technology, whose service life is two times longer than sand-basting grinder roll.
15. Automatically controlled by the central control panel.
16. The motor is set within the machine.
17. Automatically broken material bits up feeding to the sieve.
18. It is mainly used in the huge flour project of daily output more than 200 tons, and it is also used for breaking and grinding of other grain materials.
maize flour milling machine

 Diamond Tsunami Model Flour Mill Parameter
Model H 250×1250 H 250×1000 H 250×800 H 250×600
Roller(D*L)(mm) Φ250×1250 Φ250×1000 Φ250×800 Φ250×600
Roller range (diameter,mm) Φ250 - Φ230
Speed ratio 1.25:1 1.5:1 2:1 2.5:1
Feeding roller speed ratio               2:1                      1.4:1              1:1
Power (kw)                                         5.5 - 30
D of main driving wheel                                         Φ345
Groove of main driving wheel                              15N(5V) 4V、5V、6V
Gas pressure(pa)                                         600000
Outside size(L*W*H)(mm) 2072×1490×1895 1822×1490×1895 1622×1490×1895 1422×1490×1895
Weight(kg) 4100 3300 3000 2700
