Plane Rotating Sifter

Type:TQLM63Screen Size(L×W)cm:100*63Output(T/H):3.6Weight(kg):500Power(kw):0.55Out size(L×W×H)mm:1355*934*946

We're here to help: Easy ways to get the answers you need. Get Price

Share with :


TQLM Plane Rotating Sifter Gerneral Brief

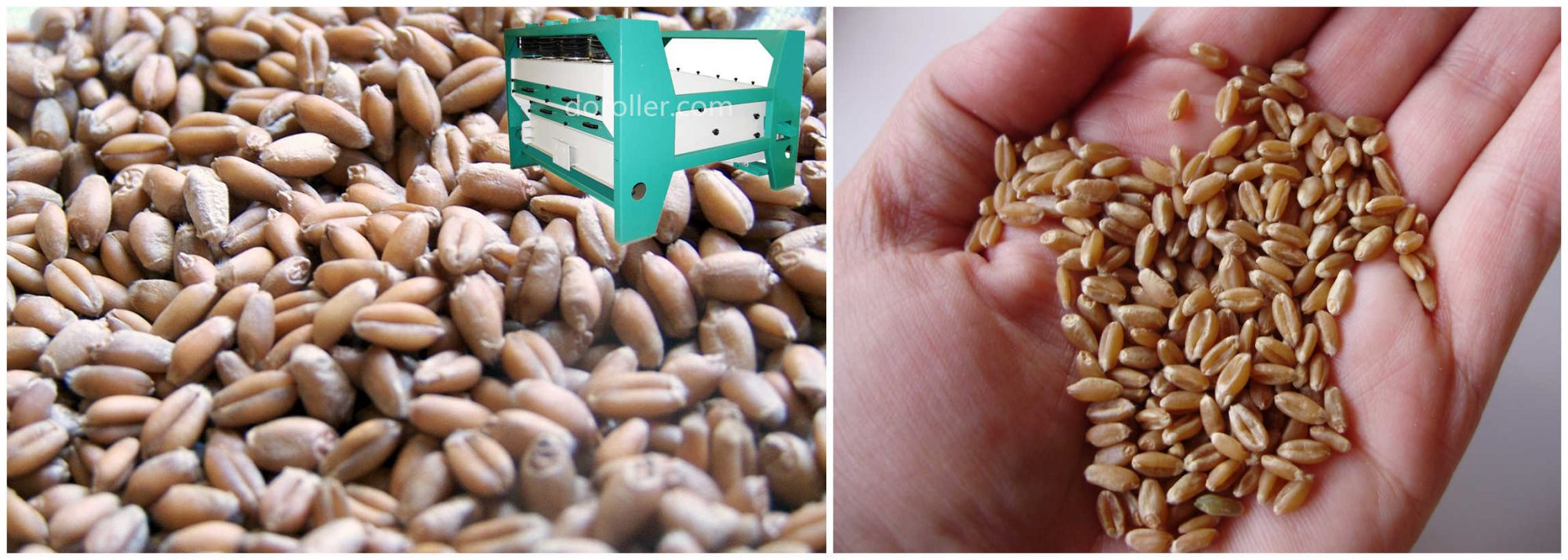

This TQLM series flat rotary screen is a kind of cleaning equipment that is usually used in grain flour production plant for cleaning wheat grain according to different particle sizes of wheat and impurities, by making use of the rotation of the screen body. This machine is featured by small volume, high capacity and stable performance, and also it can be used with vertical drafting duct, causing a good dedusting effect, so it has a wide application. We also have wheat destoner and wheat brusher available.

TQLM Flat Rotary Screen Highlights
1. Advanced processing technique and optimized structure ensure the durability and long service life of the machine.
2. The combination of round, elliptical and line working movement ensure a good cleaning property.
3. Double-layer sifter deck which is a combination of slot-hole sieve plate and round-hole sieve plate, can remove impurities from wheat efficiently.
4. There are sieve frames equipped on the both sides of the sifter body to compress the equipment.
5. Steel wire rope suspension reduces moving damping, makes adjustment easy.
6. Inspection window is set on the top of the sifter body, so it is easy to observe the processing and clean the sieve plate.

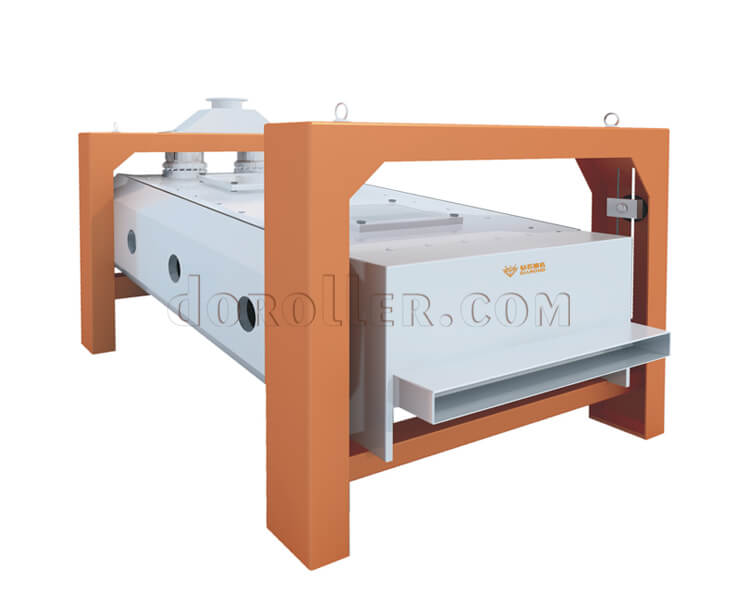

flat rotary screen

Flat Rotary Screen Technical Parameters
Type TQLM63 TQLM80 TQLM100 TQLM125 TQLM150
Screen size(L×W)cm 100*63 150*80 150*100 150*125 160*150
Output(T/H) 3.6 4.8 6 7.5 9
Weight(kg) 500 635 750 885 996
Power(kw) 0.55 0.75 0.75 1.1 1.5
Out size(L×W×H)mm 1355*934*946 2120*1265*1645 2120*1465*1645 2120*1715*1645 2120*1965*1645
