Diesel Generator Set

Brand Name:DiamondType:Open Frame/Silent/Trailer/Auto Start TypeCertificate:CE, ISO, SONCAPWarrenty:1 year

We're here to help: Easy ways to get the answers you need. Get Price

Share with :

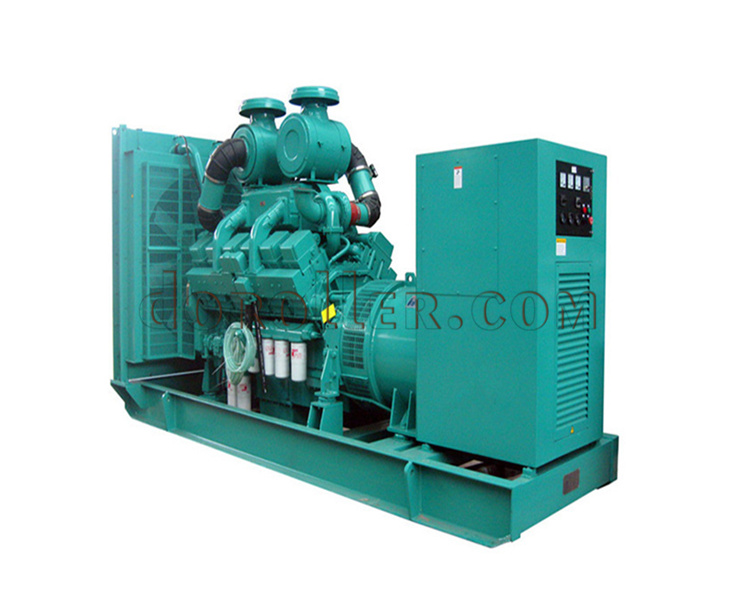

Diesel Generator Set

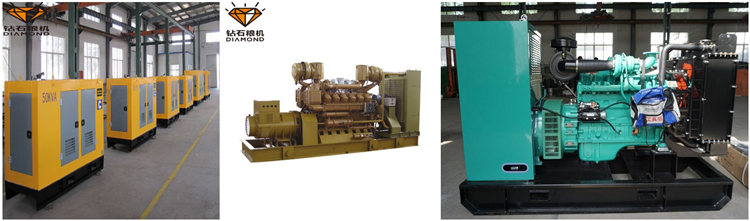

Our diesel product range, includes open frame, silent type, trailer, and auto start diesel generator sets which offer outstanding value for grain flour mill plant and other workshops, guaranteeing maximum efficiency and productivity. Key options further enhance the standard product offering versatility and flexibility throughout the range.

Diesel Group Generator Highlights
1. 45-50℃ Radiator;
2. 24V DC Start motor;
3. Daily base fuel tank for 10-12 hours’ running;
4. Vibration insulators between the engine/alternator and base frame;
5. High performance with free maintenance free, lead-acid starting batteries and battery switch;
6. Industrial silencer and flexible exhaust hose;
7. High performance MCCB circuit breaker;
8. Designed to Comply with ISO9001&CE;
9. Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load, 100% load as well as 110% load and the checking and proving of all control and safety shut-down functions.

Parameter of The Electric Generator
Model: HLC24GF
Output Type: AC Three Phase
Speed: 1500RPM/1800 RPM
Frequency: 50HZ/60HZ
Rated Power: 24KW/30KVA
Rated Voltage: 400/230V
Rated Current: 44A
Engine: Cummins
Alternator: Stamford/Leroy Somer/Marathon
ATS(Automatic Transfer Switch): for your option
Base fuel tank: 8 hours
Control Panel: Smartgen, Deepsea,ComAp
Cooling system: Water-cooled
