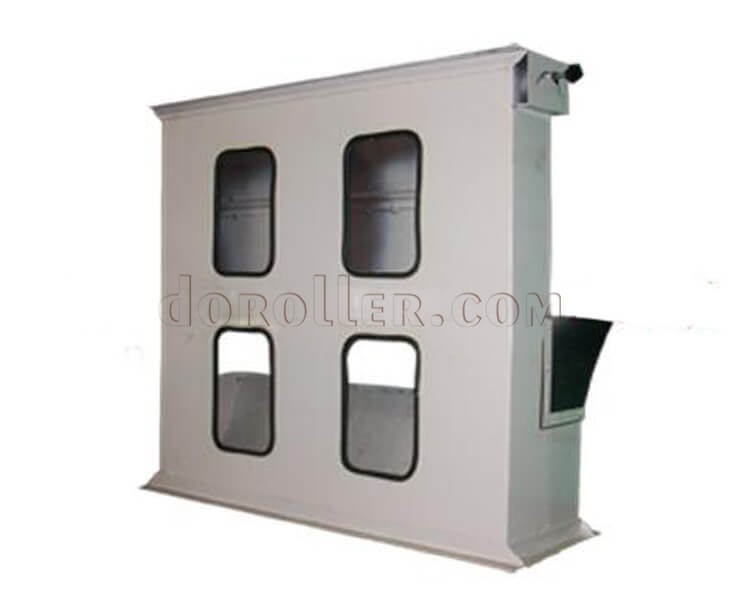

Vertical Air Drafting Duct

TYPE:XFD80Output (t/h:12Air Volume(m³/h):3000Dimensions(mm):1035*1200*450

We're here to help: Easy ways to get the answers you need. Get Price

Share with :


Vertical Air Drafting Duct
The vertical air drafting duct is mainly applied for separating light impurities from raw grains, such as grain husk, empty grains, grass seeds, sand and dust. It is usually used with vibrating sifter, plane rotating sifter and other cleaning equipment. It is designed according to the their screen width for better supporting use with other grain cleaing equipment.

Vertical Air Drafting Duct Working Principle
This machine is usually working with vibrating screen, rotary flat screen and other grain cleaning equipment, so the raw grain is conveyed into it through the screening equipment, and the light impurities are removed by the airflow in the air duct for the different suspension velocity of raw grain and foreign materials.

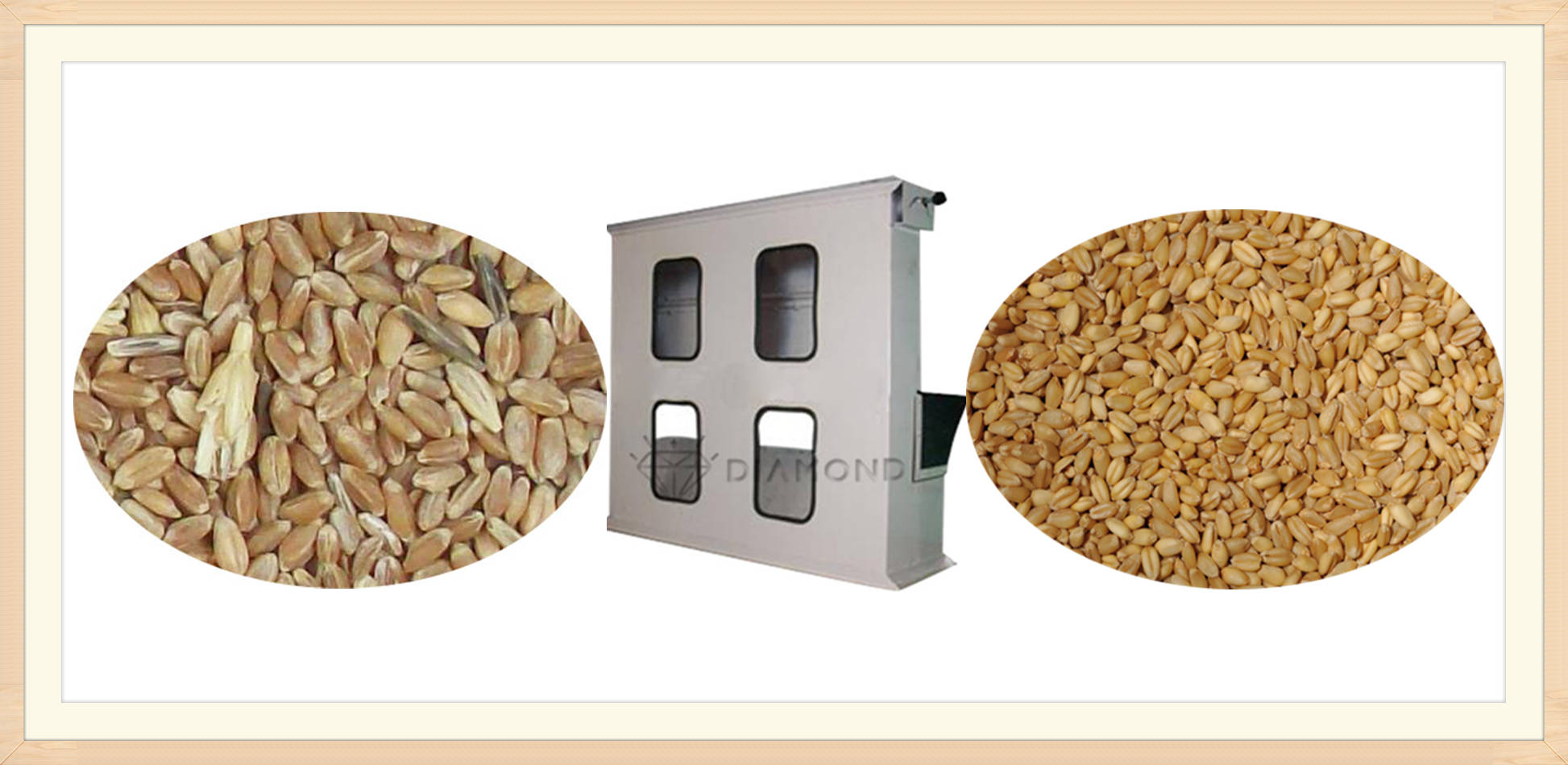

vertical air drafting duct

Vertical Air Drafting Duct Technical Parameters
Type XFD80 XFD100 XFD120 XFD150
Output (t/h) 12 16 20 24
Air Volume (m3/h) 3000 4000 4800 5600
Dimensions (mm) 1035*1200*450 1235*1200*450 1435*1200*450 1800*1400*450
