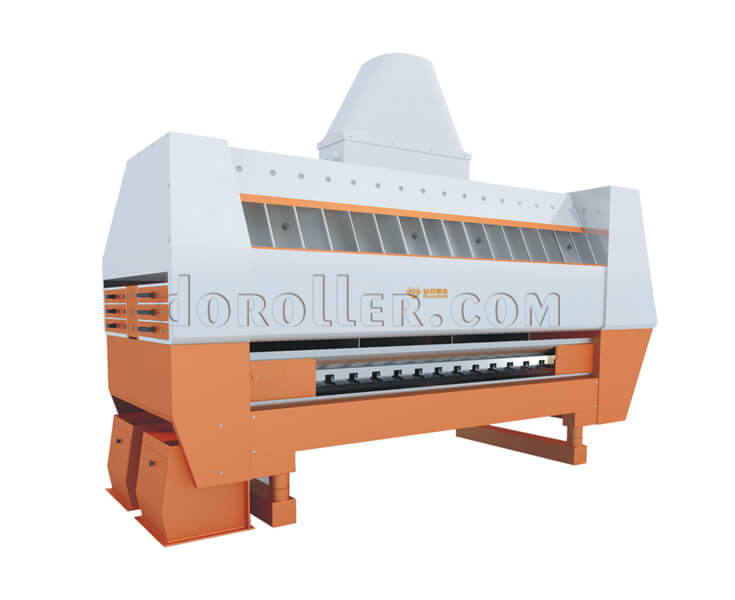

Grain Flour Purifier

Type:FQFD-H49*2*3Power(kw):2*0.18Air volume(㎡):20-35Size(mm):2730*1135*1520

We're here to help: Easy ways to get the answers you need. Get Price

Share with :

Introduction

Grain Four Purifier
This flour purifier series are developed by absorbing the advantages of other machines. It is adopting vibrating motor transmission structure, and it is an ideal separating and screening grain flour machine achieved through vibrating, air and filtering. It can be used with diamond brand SS model flour mill, wheat brusher, etc to plan a grain flour production line.

The grain flour purifier machine has the following performances and features
1. Adopting vibrating motor transmission structure. An ideal separating and screening flour products through vibrating, air and filtering. The filtering rate and ash content reduction rate are unparallel to other equipment.
2. Adopting cleaning brush to clean the screen surface. Reliable and excellent surface cleaning effect.
3. The supporting points and swinging points adopt rubber spring and rubber bearing, requiring no lubricant and featuring balanced movement, high vibration isolation and durability, low noise.
4. The total air quantity and every wind chamber can be adjusted, effectively controlling the air drafting of each wind chamber.
5. The synchronous vibration of screen body, divider body and conveying trough makes the vibrating system balanced.
6. The feeding system has reliable distributing mechanism, able to guarantee the balance of the materials when entering screening state.
7. Both the oversize and residue have governor mechanism, able to conveniently control the material flowing direction according to the process requirements.
8. Adopting excellent design, featuring reasonable structure, effective dustproof measures, low failure rate and quite convenient inspection, maintenance and adjustment.

Grain Four Purifier Technical Data
Type Capacity T/H Power KW Air volume㎡ Size MM
FQFD-H49*2*3 coarse 0.7-1.4 2*0.18 20-35 2730*1135*1520
slimsy 0.3-0.7
FQFD-H49*2*3 coarse 1.4-2.8 2*0.18 40-70 2730*1135*1500
slimsy 0.6-1.4
FQFD-H60*2*3 coarse 1.6-3.2 2*0.25 50-85 2730*1500*1800
slimsy 1.0-1.6
