Truck Scale

Brand:DiamondPower Supply:220V/50HZDisplay Type:LCDCapacity:10~150T/5~50kgDelivery Time:Shipped in 15 days after payment

We're here to help: Easy ways to get the answers you need. Get Price

Share with :

Introduction

Truck Scale

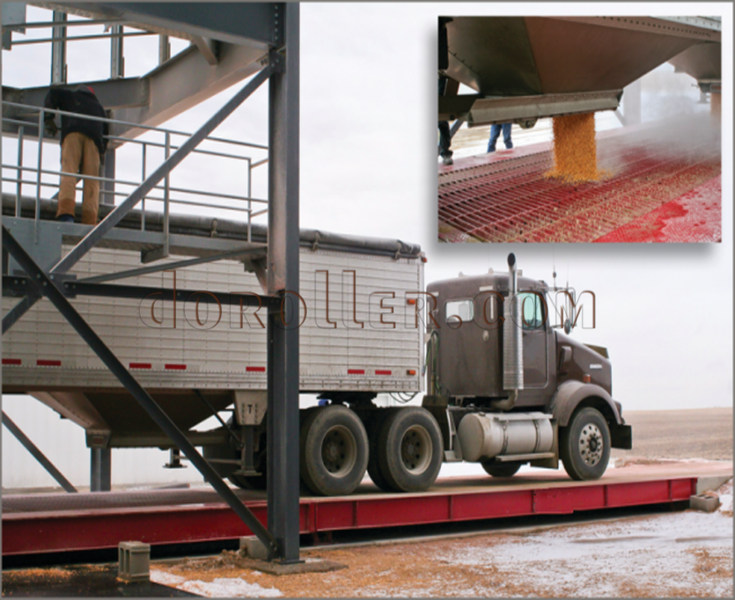

Truck scale is preferred for vehicle weighing operations in grain milling plants. It is usually mounted permanently on a concrete foundation, that is used to weigh entire road vehicles and their contents. By weighing the vehicle both empty and when loaded, the load carried by the vehicle can be calculated. Our versatile truck scales can be paired with a range of indicators, software and accessories for a complete weighing and data management solution.

Floor Scale Highlights
1. Weighing Capacity: Series
2. Structure: U-shape beams
3. Thickness of plate: 8mm 10mm 12mm 14mm
4. Painting: Anti rust and anti corrosion painting
5. Accuracy class: OIML(III
6. Body: 3 section 6 pcs
7. Safe Overload: 120%
8. NO. of load cells: 8 ZEMIC load cells
9. With XK3190 A9p indicator(mini printer)
10. All the screws and tools used for installation has been included in the price

Grain Truck Scale Parameter
Model: SCS
Truck scale width: 3m,3.2m.3.4m,3.5m
Truck scale length: 6-24m
Accuracy class: OIML(III)
Capacity range: 10-150(Ton)
Safe overload: 150%
Material: Q235 steel
Thickness of plate: 10mm or 12mm
Structure: U shape bridge construction stucture
Structure Thickness: 6mm
Painting: Anti rust and anti corrosion painting
Work temperature Indicator: -10C to +40C Scale platform: -30C to +65C
Power supply: 220V 50HZ to 230V 60HZ or 110V 60HZ
Packing detail: Carton packing
Quality system: ISO9001:2008
Weighing indicator: Electronic type or digital type
Load cell/sensor: Electronic type or digital type
PC: Brand desktop computer
